Terrafirma A12000 12V 12000lb Winch With Synthetic Rope & Wireless Remote TF3301

£487.95

Terrafirma A12000 12V Electric Winch
With Synthetic Rope

The Terrafirma A12000 winch is a hugely capable winch and features everything expected by commercial users, recreational and competition off roaders alike. Its powerful 6hp 12v motor and low noise 3 stage planetary gearbox gives 12,000lb (5443kg) of pulling power. Its fitted with 25 meters of 11mm silver-grey synthetic rope, both a wired controller and wireless remote, black anodised aluminium hawse fairlead and safety hook.

This is all cased in a modern and stylish matt black housing. The low-profile design is built on the standard frame size of 10″x4.5″ to allow fitment into most popular mounts and bumpers. The solenoid pack can be mounted where ever you like. It can be fixed to the top of the winch, or hidden out of the

11 in stock

SKU: TF3301 - DIRECT (39kg) Category:

Description

Terrafirma A12000 12V Electric Winch
With Synthetic Rope

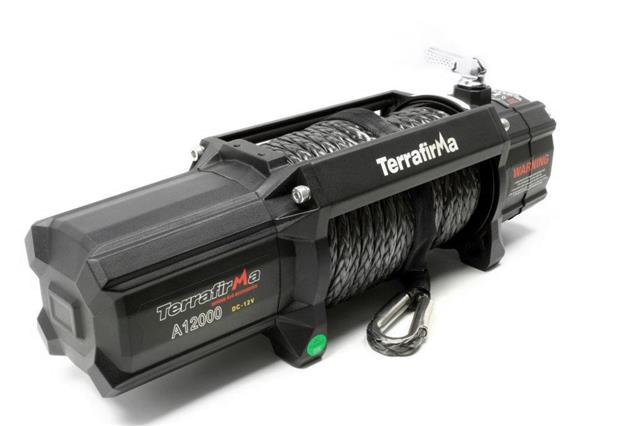

The Terrafirma A12000 winch is a hugely capable winch and features everything expected by commercial users, recreational and competition off roaders alike. Its powerful 6hp 12v motor and low noise 3 stage planetary gearbox gives 12,000lb (5443kg) of pulling power. Its fitted with 25 meters of 11mm silver-grey synthetic rope, both a wired controller and wireless remote, black anodised aluminium hawse fairlead and safety hook.

This is all cased in a modern and stylish matt black housing. The low-profile design is built on the standard frame size of 10″x4.5″ to allow fitment into most popular mounts and bumpers. The solenoid pack can be mounted where ever you like. It can be fixed to the top of the winch, or hidden out of the way behind the grille, or where ever you have space to fit it. The wiring is also all color coded to make fitting easier. The winch is fitted with 2 green LEDs to indicate the winch is ‘live’ and ready to work. You get two controllers with the winch too, both a plug-in wired controller and a wireless remote.

As well as its superb performance and stylish design this winch is also supported with a comprehensive spares back-up and 1 year warranty from Terrafirma.

This winch is IP67 rated, so is sealed from dust and dirt, and safe from weather, waves and immersion up to 1m for up to 30 mins.


This will fit most bumpers and mounts with the standard 10″x4.5″ (254mm x 114.3mm) bolt pattern but please double check you have the space around this for the winch to fit, all dimensions are shown in the diagram above.

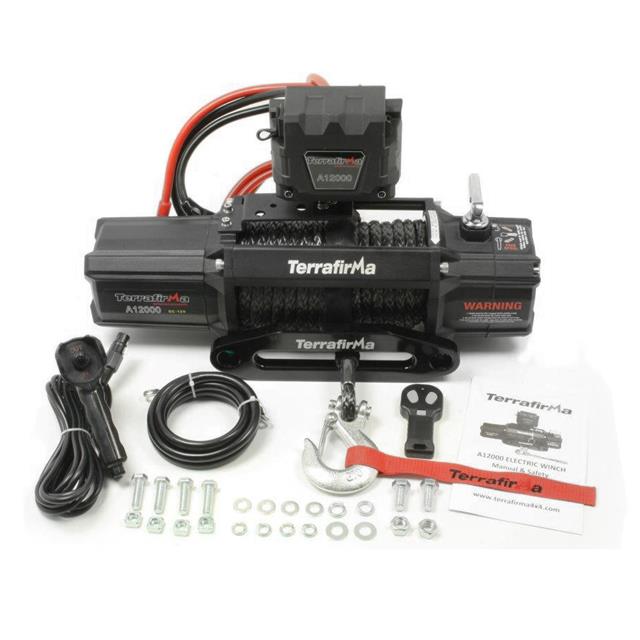

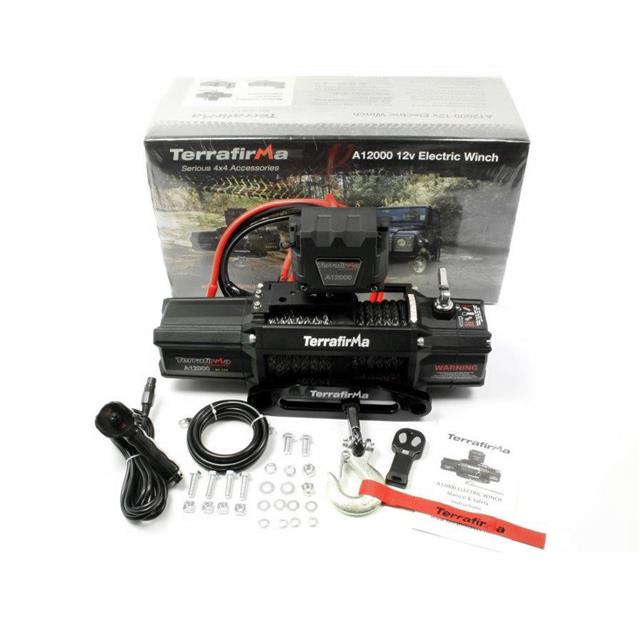

This winch is supplied with everything photographed, but please remember that different wiring may be required depending where the winch and battery are fitted on the vehicle. Its also recommended to fit a kill-switch within the wiring so you can completely disconnect the winch when not required. We are a Durite supplier and can get hold of most auto electrical components, let us know if there is anything extra you need.

These winches weigh 37.5kg, and when fitted to a HD winch number it may also be worth considering uprated springs to maintain the vehicles ride height. We have a wide range of springs, shocks and bumpers available for most Land Rover models so if there is anything additional you need, send us a message or give us a ring.

Please see our other items for thousands more Land Rover parts and accessories



Additional information

Weight 39.000 kg
Dimensions 28.0 × 65.0 × 36.0 cm
Manufacturer Part Number

TF3301

Type

Winch

Unit Quantity

1

Subtype

Winch

MPN

TF3301

Condition

New

Brand

Terrafirma
